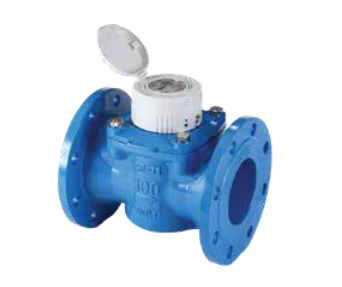

HR Products 150mm Pattern Approved Water Meter

The pattern approved BIL WPD Water Meter is designed
and tested over a wide measuring range and provides
accurate measuring results over a long period making it
suitable for all non-urban applications where NMI-M10
Pattern Approved meters are required between 50mm
and 300mm diameter.

Key characteristics
• Wide measuring range, small pressure loss
• Low starting flow and high overload security
• Pulse output with integrated reed switch
• Long-term accuracy and stability
• Swirl-reducing inlet design
• Replaceable measuring internals
• Water-proof (IP68), hermetically sealed, glass/copper
register
• Solid cast iron construction with durable epoxy
coating for exposure to field applications

Applications
• For the measuring of high flow rates
• For horizontal or vertical installation
• For cold water up to 50°C
• For applications where NMI-M10 Pattern Approved
water meters are required

Available sizes
• 50mm – 300mm (2” – 12”)
• Table E flanged inlet/outlet
